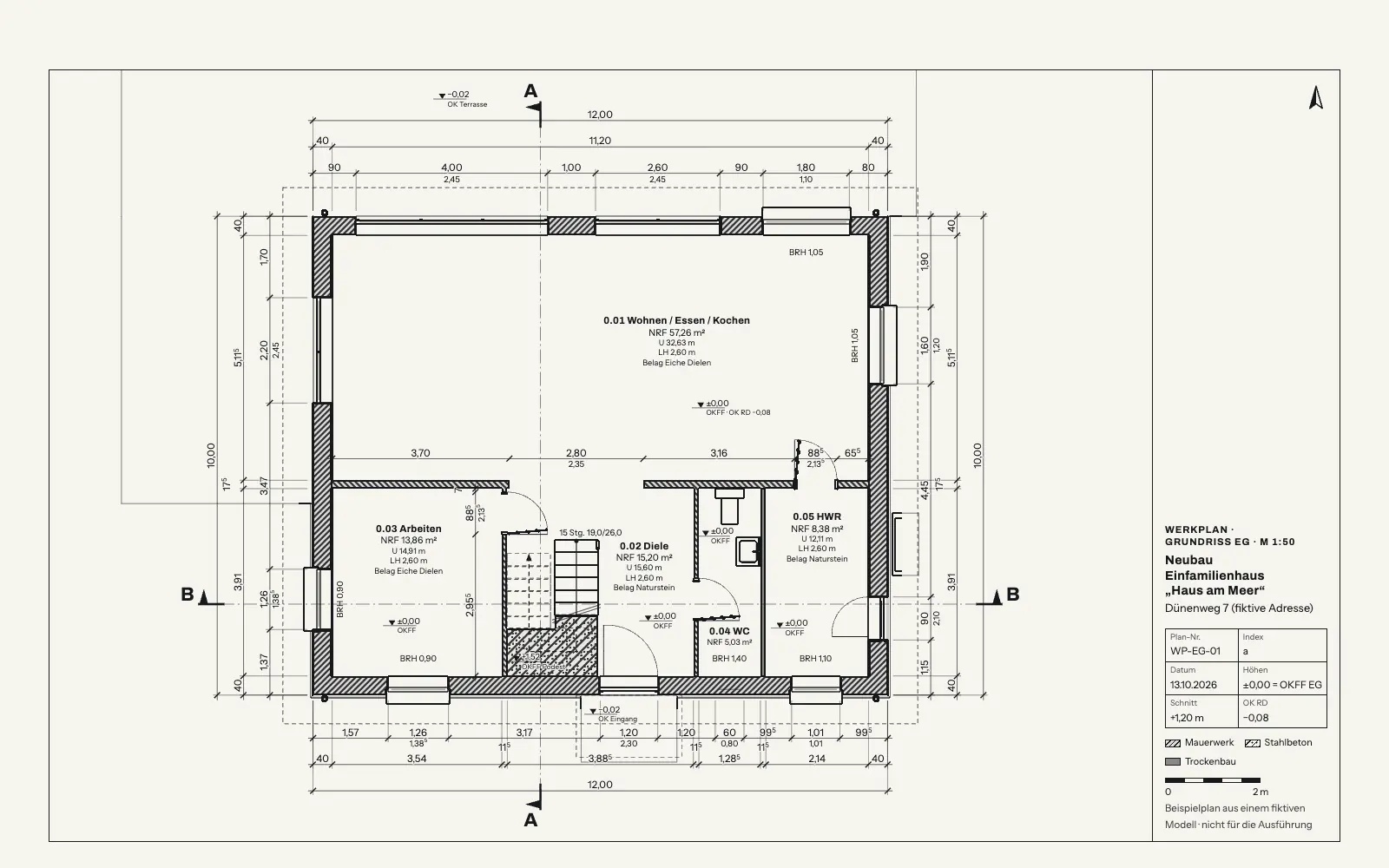

Ground floor plan of the example house as a working drawing at 1:50: hatched walls, dimension chains, room stamps, stair and levels.

Example · Gewerkton Studio

This floor plan is not a drawing.

Scroll down. Everything you see comes from one 3D model.

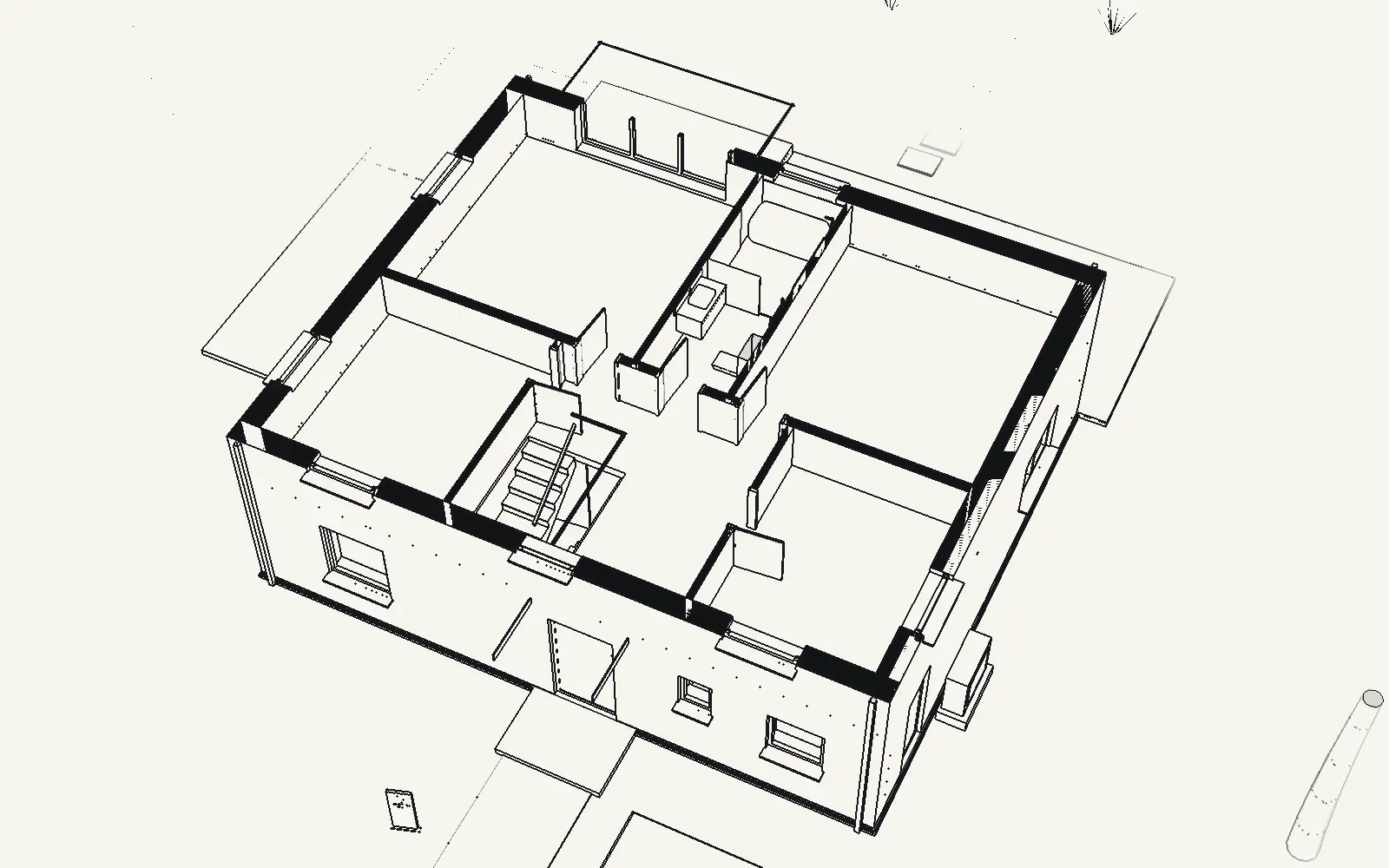

The cut rises and the walls of the house grow out of the plan.

It is a cut through the real 3D model, at 1.20 m.

Raise the cut and the walls grow out of the plan. Same walls, same openings, same rooms.

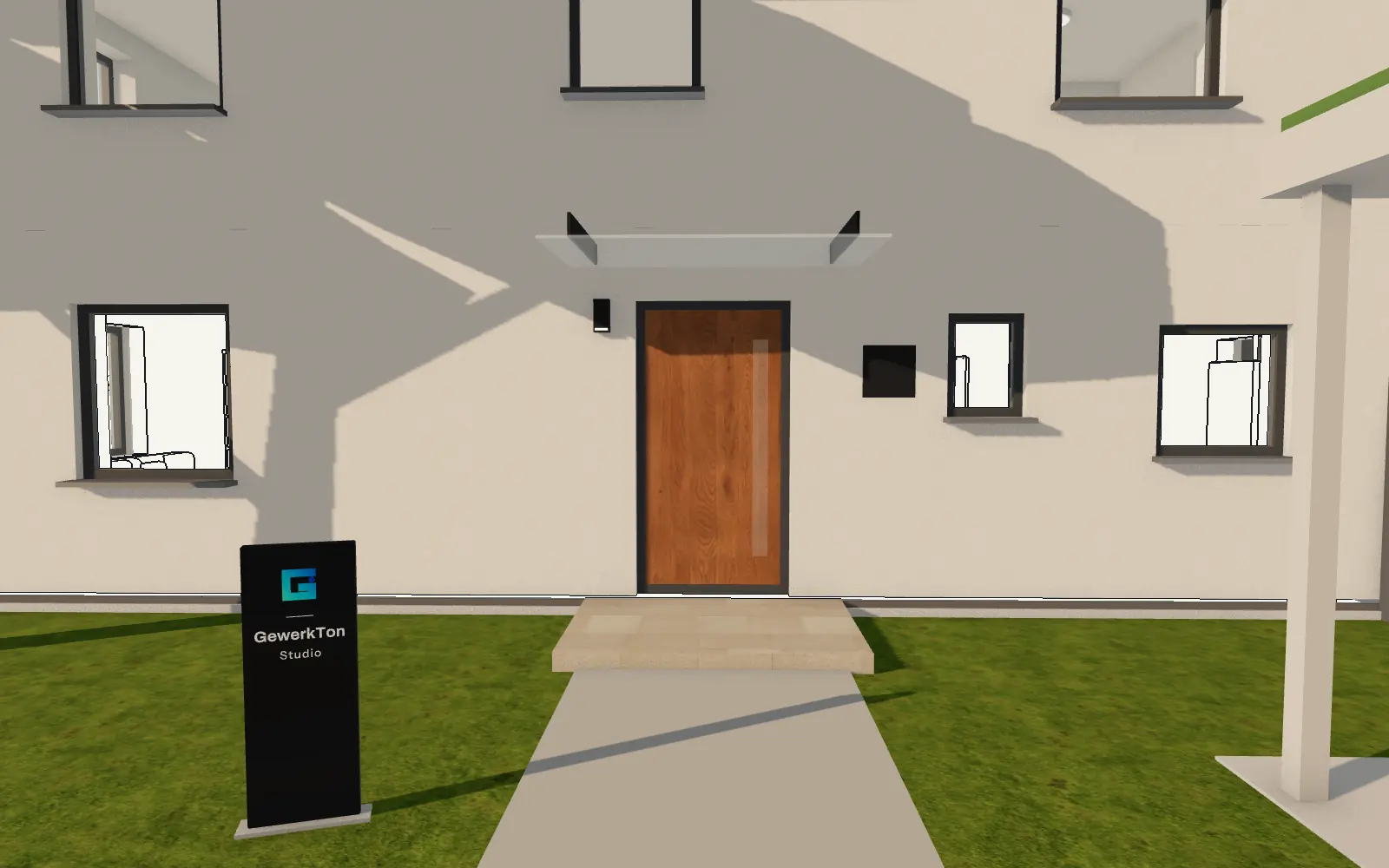

Street view of the house; materials sweep across the facade.

From the street to the front door.

The plan and the house are the same data. Nothing was redrawn for this view.

Inside the hall: the room turns from line drawing to real materials.

Each room stays a drawing until you reach it.

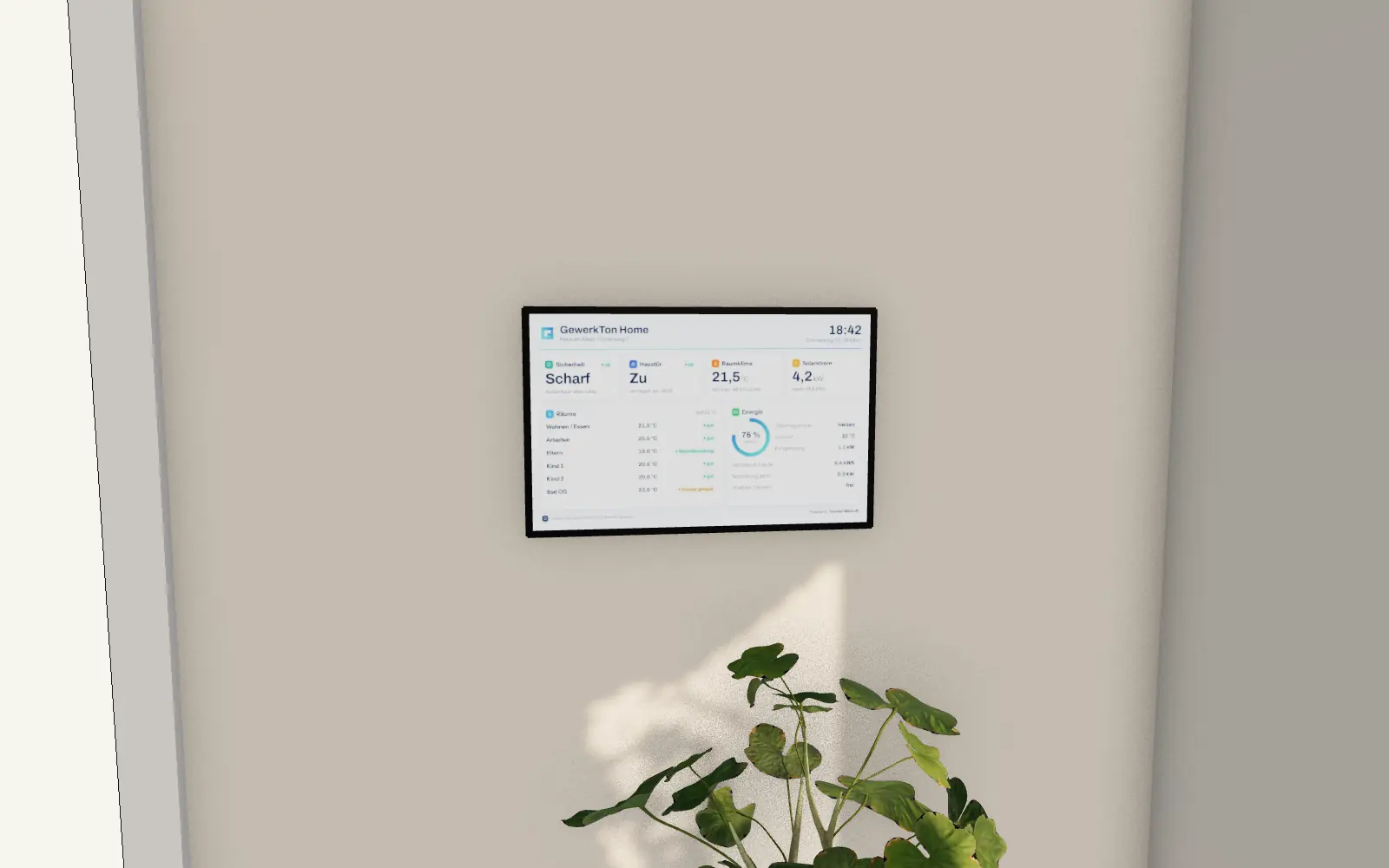

The hall: stairs, coat rack and a wall display next to the front door.

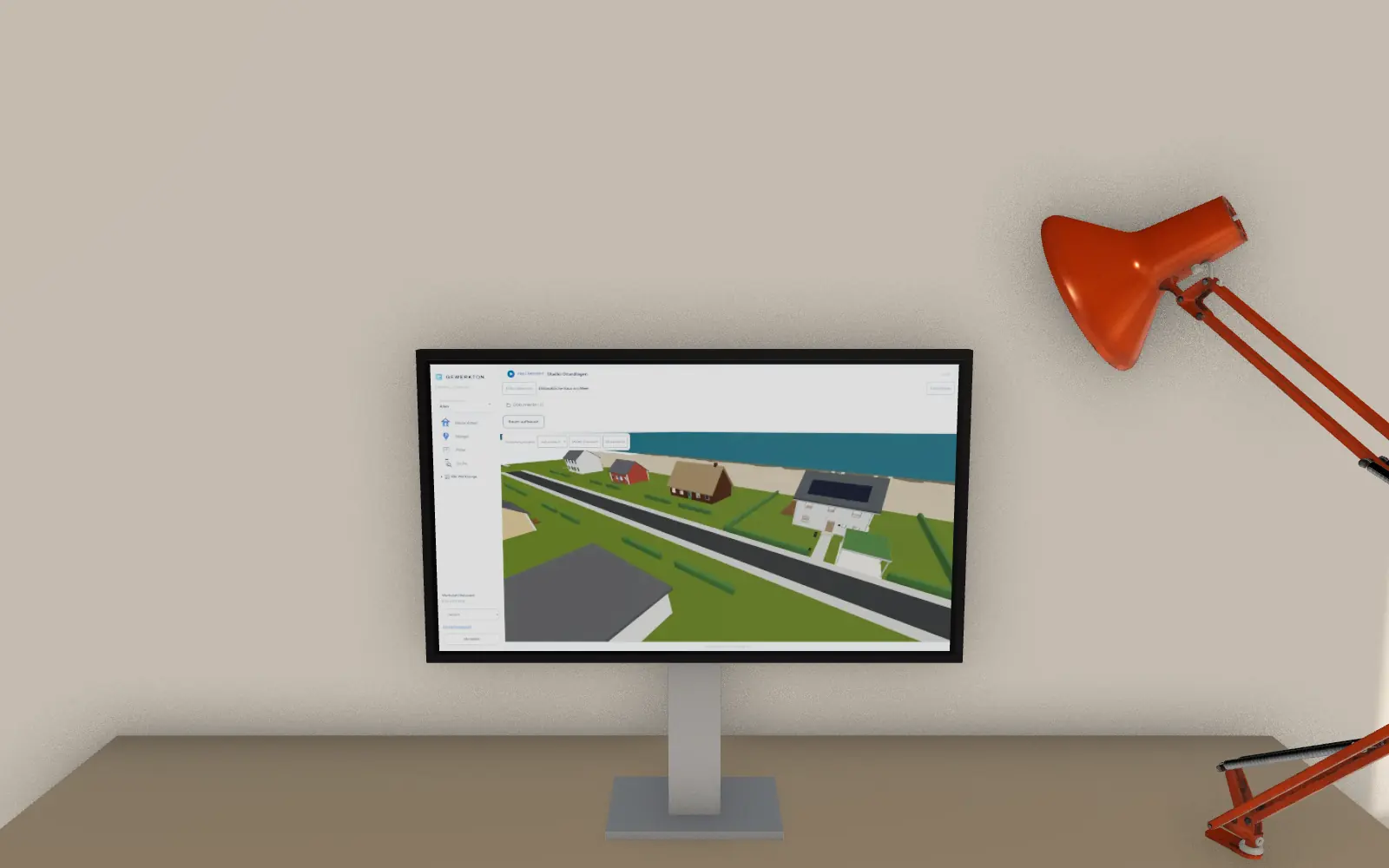

The study: a monitor shows Gewerkton Studio with this house.

Gewerkton Studio: plans and models in the browser.

Studio is part of the Gewerkton web app. Same sign-in, same menu.

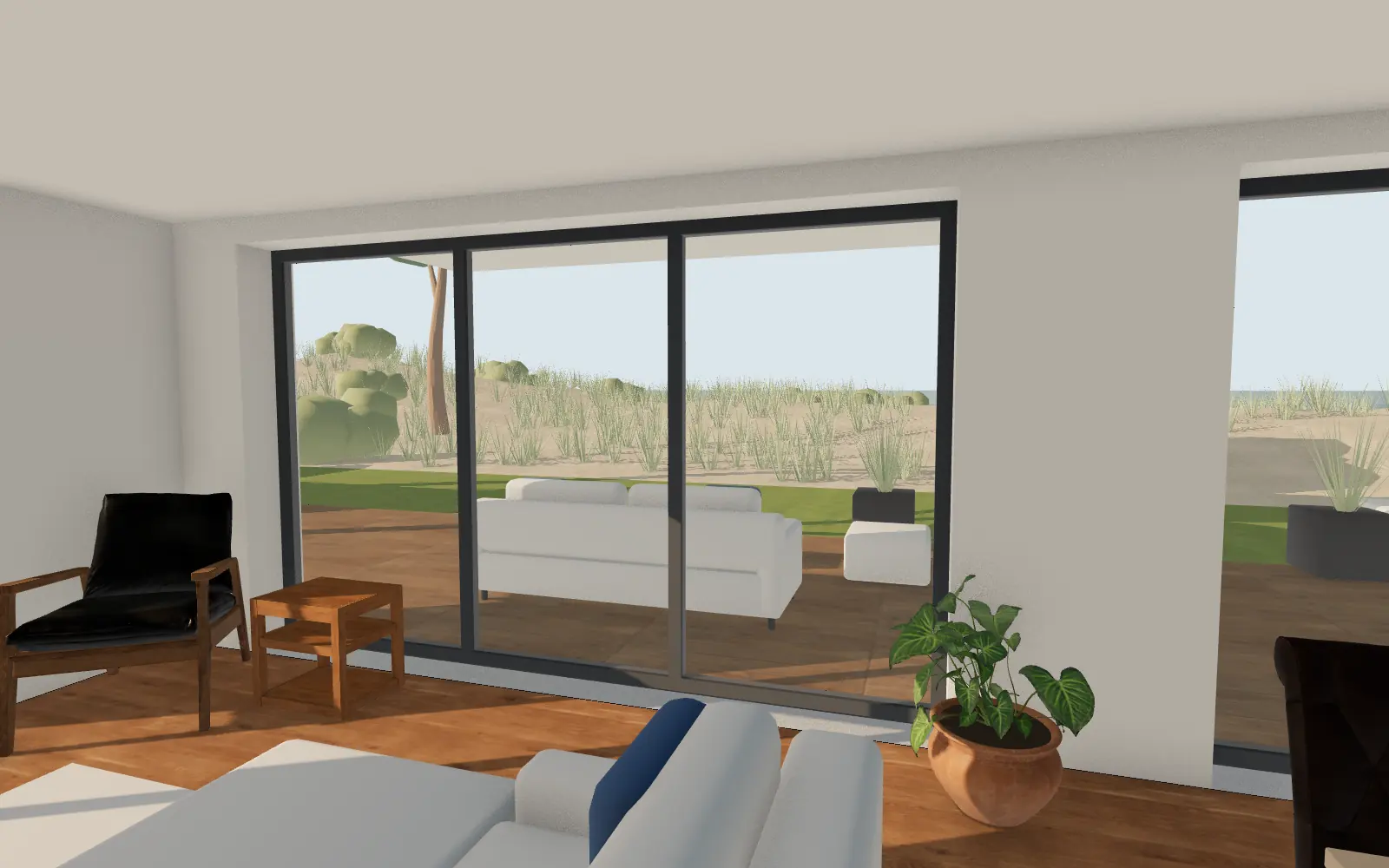

Living, dining and kitchen with a view to the dunes and the sea.

Walk through the model at eye height.

Living, dining, kitchen. Beyond the sliding doors: terrace, dunes, sea.

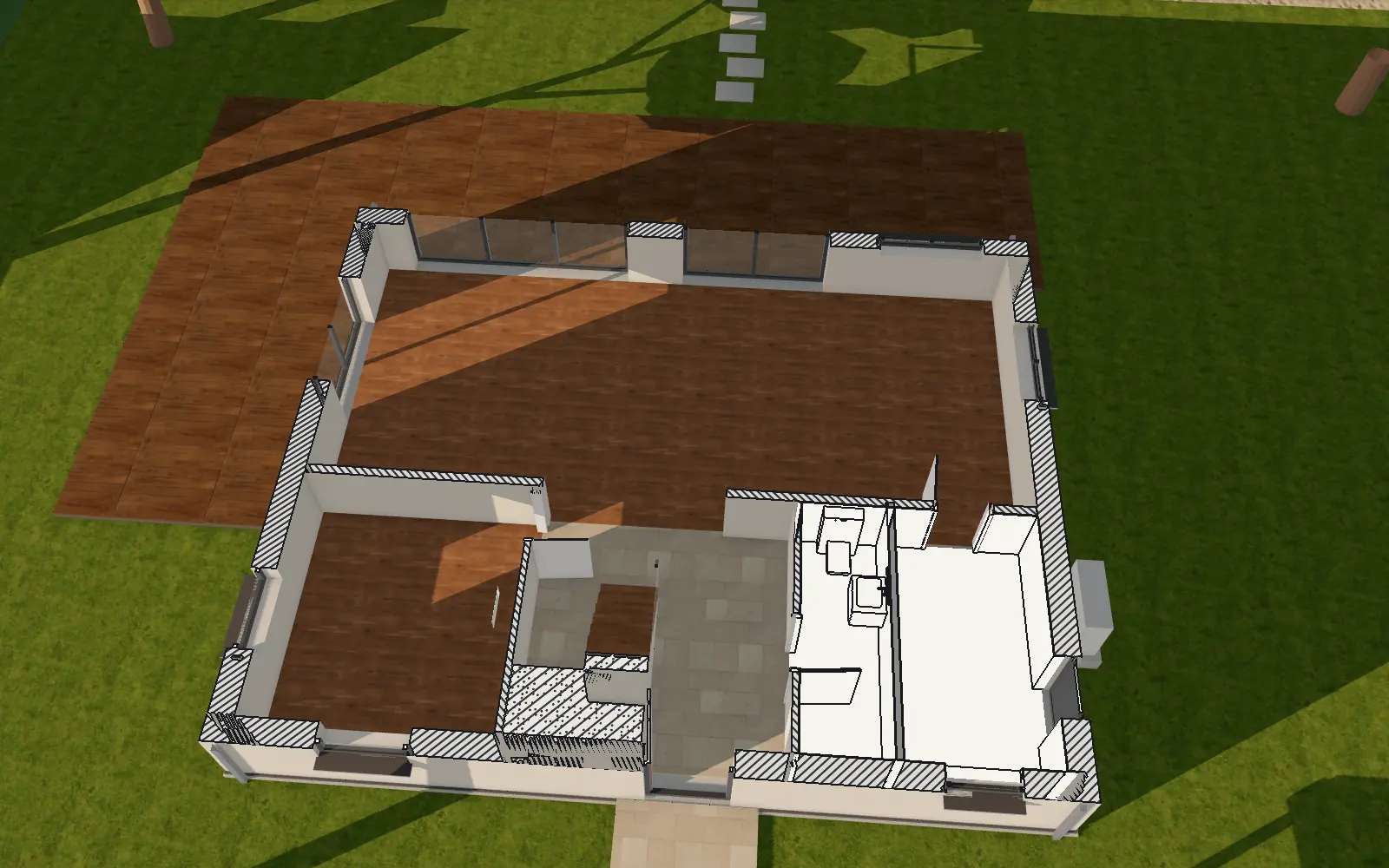

Back to the plan: the rooms you walked through now show their materials.

Back to the plan.

The same cut at 1.20 m. The rooms you walked through now show their materials.

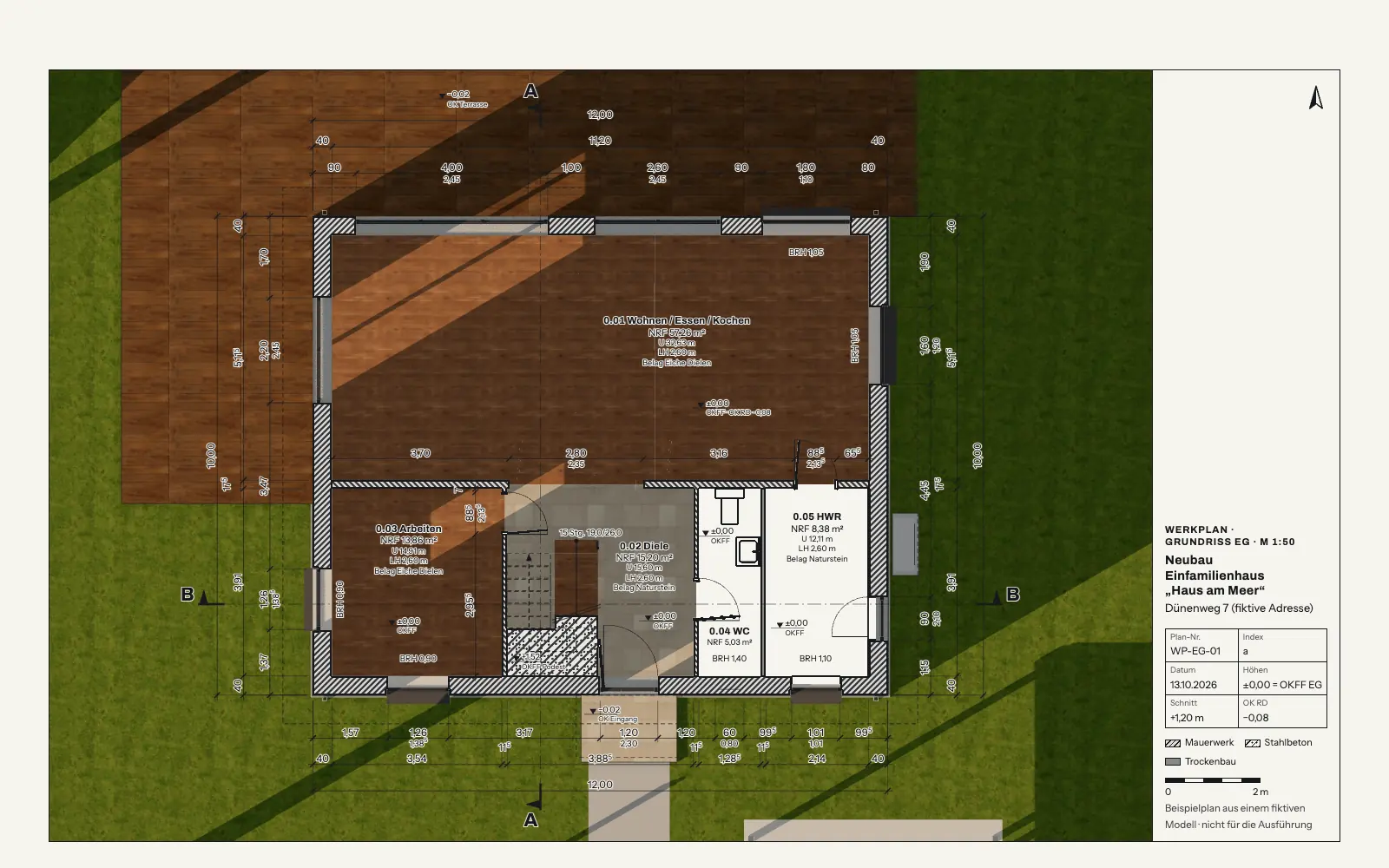

The finished plan with the visited rooms in colour.

One model. Plan, house and walk-through.

Gewerkton Studio is the browser workspace for plans and models, a part of the Gewerkton web app.
